In the previous tutorials, we set up the infrastructure (AKS via Terraform) and created a continuous integration workflow that builds a Node.js web application, containerizes it, and pushes the image to a container registry.

The key GitOps principles we aim to illustrate include:

Storing deployment manifests in a Git repository.
Reconciling, pulling and applying changes within Kubernetes, rather than externally pushing changes into Kubernetes from a CD pipeline.
listen to new image versions and update the relevant manifet with the updated tag.

To accomplish this, we'll leverage FluxCD as our chosen GitOps tool. Within FluxCD, we will make use of several automation capabilities, including image policies, image automation, and more.

Make sure to install FluxCD CLI and other prerequisites

Repository Structure

There are several ways to structure FluxCD repository More information can be found here. For the sake of simplicity in this tutorial, we will utilize a monorepo approach, consolidating all Kubernetes manifests within a single Git repository.

This is what our repository looks like (made small changes in compare to FluxCD monorepo. Later on, after the setup and bootstraping, we will delve into various kustomizations and their correlation with the repository structure

High level structure:

├── apps
│   ├── base
│   └── dev
├── infrastructure
│   ├── config
│   └── controllers
└── clusters
    └── dev

Bootstraping Flux

Make sure you are using the right kubectl context!

For example in case you are using Azure AKS:

az aks get-credentials --resource-group rg-k8s-dev --name aks-dev

Verify cluster readiness:

flux check --pre

► checking prerequisites
✔ Kubernetes 1.25.12 >=1.20.6-0
✔ prerequisites checks passed

Make to create and set GITHUB_TOKEN

Or if you are using different Git server follow the bootstrap documentation

export GITHUB_TOKEN=<YOUR_PAT>

Start the bootstrap (Flux will create the repository for you incase it doesnt exists):

flux bootstrap github --read-write-key --owner=<YOUR_ORG> --repository=blog-deployment --branch=main --path=gitops/clusters/dev --components-extra=image-reflector-controller,image-automation-controller

    Message:
    ► connecting to github.com
    ► cloning branch "main" from Git repository "https://github.com/devozs/blog-deployment.git"
    ✔ cloned repository
    ► generating component manifests
    ✔ generated component manifests
    ✔ committed sync manifests to "main" ("e65db7e29d592c016a8f82271a577e6b6c0b2935")
    ► pushing component manifests to "https://github.com/devozs/blog-deployment.git"
    ► installing components in "flux-system" namespace
    ✔ installed components
    ✔ reconciled components
    ► determining if source secret "flux-system/flux-system" exists
    ► generating source secret
    ✔ public key: ecdsa-sha2-nistp384 AAAAE2VjZHNhLXNoYTItbmlzdHAzODQAAAAIbmlzdHAzODQAAABhBNOHqQkmVLEVGXn9IiiOAuHkv8/Je0lFGdrCJAccUHYalIDiDOF9CKFxLFXvpTtIePVS3kshJRnfNKfwFVqYdEWTP0xHm7KXSv4dwZZgf011FdYBv4JSSujIhv8m31qu1A==
    ✔ configured deploy key "flux-system-main-flux-system-./gitops/clusters/dev" for "https://github.com/devozs/blog-deployment"
    ► applying source secret "flux-system/flux-system"
    ✔ reconciled source secret
    ► generating sync manifests
    ✔ generated sync manifests
    ✔ committed sync manifests to "main" ("9e14f895a4916fad884ffbe564c049e72f1ecd58")
    ► pushing sync manifests to "https://github.com/devozs/blog-deployment.git"
    ► applying sync manifests
    ✔ reconciled sync configuration
    ◎ waiting for Kustomization "flux-system/flux-system" to be reconciled
    ✔ Kustomization reconciled successfully
    ► confirming components are healthy
    ✔ helm-controller: deployment ready
    ✔ image-automation-controller: deployment ready
    ✔ image-reflector-controller: deployment ready
    ✔ kustomize-controller: deployment ready
    ✔ notification-controller: deployment ready
    ✔ source-controller: deployment ready
    ✔ all components are healthy

Verify Flux PODs

The following pods should be running on flux-system namespace

kubectl get pod -n flux-system

NAME                                           READY   STATUS    RESTARTS   AGE
helm-controller-69dbf9568-tp4x6                1/1     Running   0          2m5s
image-automation-controller-6bbc947558-h82k6   1/1     Running   0          2m5s
image-reflector-controller-7c49fdc68f-skrjs    1/1     Running   0          2m5s
kustomize-controller-77bf676476-cj5rr          1/1     Running   0          2m5s
notification-controller-7bb6d7684d-k9s9l       1/1     Running   0          2m5s
source-controller-5996567c74-kt5nt             1/1     Running   0          2m5s

Exploring Flux Kustomizations

Flux manage the deployment and its dependencies using a kustomization resource. To watch the kustomizations list and thier status:

flux get kustomizations

NAME                REVISION            SUSPENDED   READY   MESSAGE
apps                main@sha1:45260107  False       True    Applied revision: main@sha1:45260107
flux-system         main@sha1:45260107  False       True    Applied revision: main@sha1:45260107
infra-configs       main@sha1:45260107  False       True    Applied revision: main@sha1:45260107
infra-controllers   main@sha1:45260107  False       True    Applied revision: main@sha1:45260107

You can also get kustomizations CRD using the kubectl CLI:

kubectl get kustomizations -n flux-system

NAME                AGE   READY   STATUS
apps                28h   True    Applied revision: main@sha1:45260107f70f9618872e50d4a196126a92ef715c
flux-system         36h   True    Applied revision: main@sha1:45260107f70f9618872e50d4a196126a92ef715c
infra-configs       28h   True    Applied revision: main@sha1:45260107f70f9618872e50d4a196126a92ef715c
infra-controllers   28h   True    Applied revision: main@sha1:45260107f70f9618872e50d4a196126a92ef715c

Secrets

In this tutorial, I haven't utilized a secret manager like Azure Key Vault. Instead, I've used a secret YAML file and ensured that it's not committed to GitHub by including it in the .gitignore file.

Make sure not to put your kubernetes secrets in Git

For testing purpuse you can add them to gitignore. Permenant solution would be to use key vault or other solution like sealed-secrets (works well with FluxCD)

Docker Pull Secret

Docker pull secret is being used in two ways:

Pull the blog-frontend image from Github registry
FluxCD uses it to fetch new tags from Github registry

apiVersion: v1
kind: Secret
metadata:
  name: cr-secret
  namespace: flux-system
type: kubernetes.io/dockerconfigjson
data:
  .dockerconfigjson: <PUT_YOURS>
---
apiVersion: v1
kind: Secret
metadata:
  name: cr-secret
  namespace: blog
type: kubernetes.io/dockerconfigjson
data:
  .dockerconfigjson: <PUT_YOURS>

TLS Cert Secret

You might want to use cert-mnagaer or manually use your own certificate or free one like Let's Encrypt.

I havent implemented cert-manager and simply created cert-secret that you`ll have to replace and apply the below yaml.

apiVersion: v1
kind: Secret
metadata:
  name: cert-secret
  namespace: flux-system
type: kubernetes.io/tls
data:
  tls.crt: <PUT_YOURS>
  tls.key: <PUT_YOURS>
---
apiVersion: v1
kind: Secret
metadata:
  name: cert-secret
  namespace: blog
type: kubernetes.io/tls
data:
  tls.crt: <PUT_YOURS>
  tls.key: <PUT_YOURS>

Validation

Once the reconciliation is completed and verified all kustomization are ready (described above) we can check the rest of the deployment.

kubectl get pod -n blog

NAME                             READY   STATUS    RESTARTS   AGE
blog-frontend-647c656d49-7q6x4   1/1     Running   0          79m

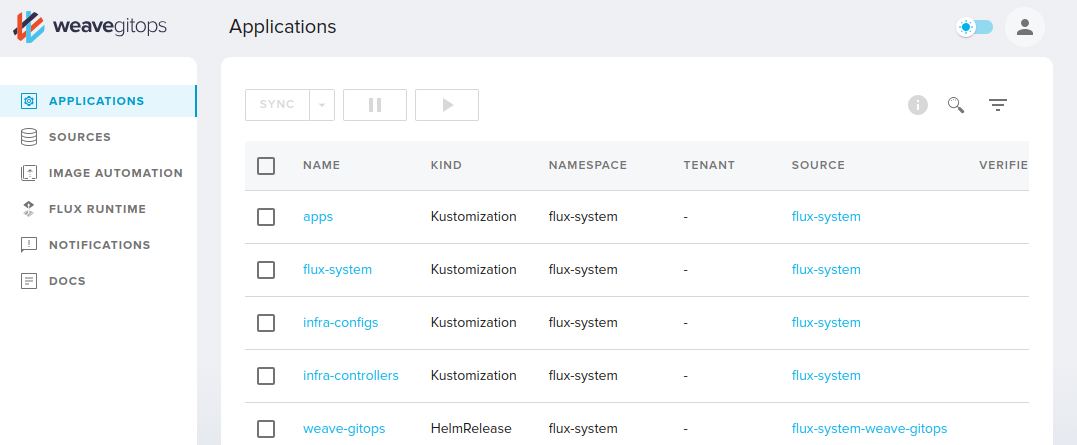

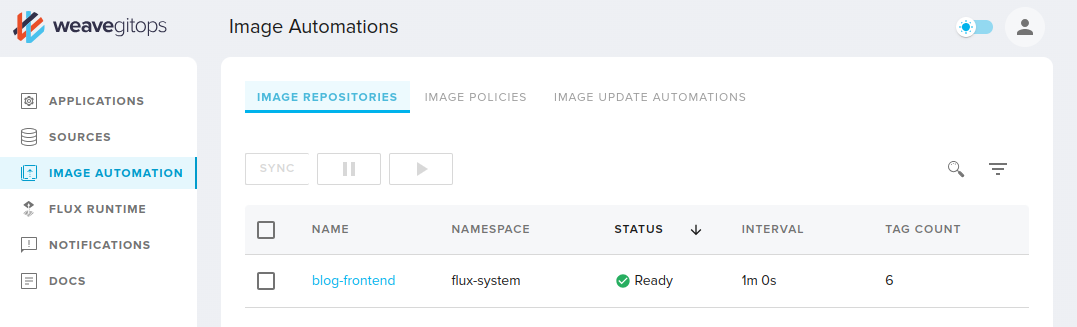

Flux also have weave-gitops UI Weave Gitops

The FluxCD Magic 🪄

We are using two powerful Flux capabilities:

Listen to new images in a certian repository and given pattern

apiVersion: image.toolkit.fluxcd.io/v1beta1
kind: ImagePolicy
metadata:
  name: blog-frontend
  namespace: flux-system
spec:
  imageRepositoryRef:
    name: blog-frontend
  filterTags:
    pattern: '^main-[a-f0-9]+-(?P<ts>[0-9]+)'
    extract: '$ts'
  policy:
    numerical:
      order: asc

apiVersion: image.toolkit.fluxcd.io/v1beta1
kind: ImageRepository
metadata:
  name: blog-frontend
  namespace: flux-system
spec:
  image: blog-frontend
  interval: 1m0s
  secretRef:
    name: DOCKER_SECRET

flux get image policy
NAME            LATEST IMAGE                                            READY   MESSAGE
blog-frontend   ghcr.io/devozs/blog-frontend:main-0292a018-1694284510   True    Latest image tag for 'ghcr.io/devozs/blog-frontend' updated from main-18c2d24e-1694278211 to main-0292a018-1694284510

flux get image repository
NAME            LAST SCAN                   SUSPENDED   READY   MESSAGE
blog-frontend   2023-09-09T22:50:26+03:00   False       True    successful scan: found 15 tags

Update the resolved image tag in the relevant Kubernetes yaml (directly to the Deployment YAML or vie Kustomization YAML)

apiVersion: image.toolkit.fluxcd.io/v1beta1
kind: ImageUpdateAutomation
metadata:
  name: image-update-automation
  namespace: flux-system
spec:
  interval: 1m10s
  sourceRef:
    kind: GitRepository
    name: flux-system
  git:
    checkout:
      ref:
        branch: main
    commit:
      author:
        email: fluxcdbot@users.noreply.github.com
        name: fluxcdbot
      messageTemplate: '{{range .Updated.Images}}{{println .}}{{end}}'
    push:
      branch: main
  update:
    path: ./gitops/clusters/dev
    strategy: Setters

flux get image update
NAME                    LAST RUN                    SUSPENDED   READY   MESSAGE
image-update-automation 2023-09-09T22:52:13+03:00   False       True    no updates made; last commit d984f3e at 2023-09-09T18:37:57Z

It will cause an update on ./gitops/clusters/dev/kustomization.yaml by the placeholder {"$imagepolicy": "flux-system:blog-frontend:tag"}

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - ../base
patches:
  - path: patches/blog-frontend-image-policy.yaml
    target:
      group: image.toolkit.fluxcd.io
      version: v1beta1
      kind: ImagePolicy
      namespace: flux-system
      name: blog-frontend
  - path: patches/blog-frontend-image-repository.yaml
    target:
      group: image.toolkit.fluxcd.io
      version: v1beta1
      kind: ImageRepository
      namespace: flux-system
      name: blog-frontend
  - path: patches/image-update-automation.yaml
    target:
      group: image.toolkit.fluxcd.io
      version: v1beta1
      kind: ImageUpdateAutomation
      namespace: flux-system
images:
  - name: blog-frontend
    newName: ghcr.io/devozs/blog-frontend
    newTag: main-18c2d24e-1694278211 # {"$imagepolicy": "flux-system:blog-frontend:tag"}

Access the application UI

You can either set a port-forward to the blog-frontend service or add a DNS record with envoy Load Balancer EXTERNAL-IP.

port-forward

kubectl port-forward -n blog service/blog-frontend 3000:3000

Forwarding from 127.0.0.1:3000 -> 3000
Forwarding from [::1]:3000 -> 3000

contour

As part of the deployment we are also using Contour as ingress controller.

Once the services are deployed you can get envoy Load Balancer EXTERNAL-IP. for example: 20.xx.xx.224 and add a DNS A record in your domain provider.

kubectl get services -n projectcontour

NAME      TYPE           CLUSTER-IP     EXTERNAL-IP    PORT(S)                      AGE
contour   ClusterIP      10.0.89.98     <none>         8001/TCP                     24h
envoy     LoadBalancer   10.0.253.112   20.xx.xx.224   80:30395/TCP,443:31965/TCP   24h
